We import and stock the complete range of Intorq spring-applied brakes and clutches (now powered by Kendrion). We stock all sizes as well as spare parts. The Intorq motor brakes are made to suit all the major electric motor manufactures requirements and specifications.

Products

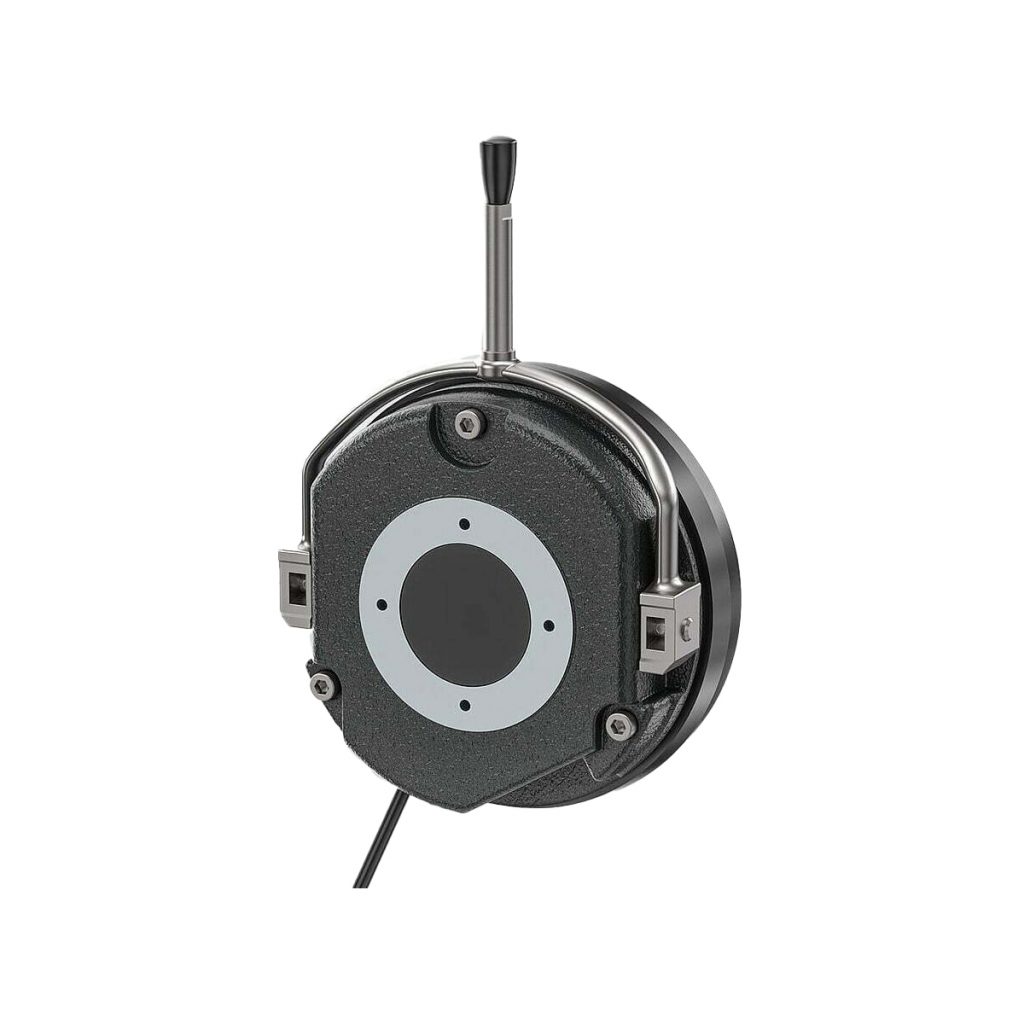

INTORQ BFK458 – Features:

• Sizes: 06, 08, 10, 12, 14, 16, 18, 20, 25.
• Braking Torque 1,5-600 Nm.
• DC Voltages 24, 103, 180, 205 V.
• Versatile to all applications.
• Torque Transmission for dry running.
• Quick & Easy Installation Pre set air gap, no location bearing required.
• Durable Long service life with brakes designed for 100% duty time.
• Low Maintenance Asbestos-free & solvent-free friction lining, long rotor/ hub connection, involute gear.
• Reliable Certified ISO 9001 7 ISO 14001 QA System.
• Options Hand release for all sizes, noise-reduced designs, corrosion protection & enclosures, micro-switches etc.
• CCV (Cold Climate Version) Temperature Resistant to -40 C Configurable for all sizes, use of chrome-plated friction surfaces.

INTORQ BFK458 MODULAR SYSTEM

The main components of the Intorq BFK458 modular system are the two basic modules E (adjustable braking torque) and N (braking torque not adjustable).

The greatest degree of flexibility is achieved for a broad range of applications by the combination of the basic module with specific modules.

INTORQ ELECTRICAL ACCESSORIES

In almost all application cases, the comprehensive range of Intorq switchgear provides the ideal voltage supply solution for electromagnetic clutches & brakes, spring-applied brakes, clutch/ brake combinations, double clutches, solenoids & solenoid valves.
