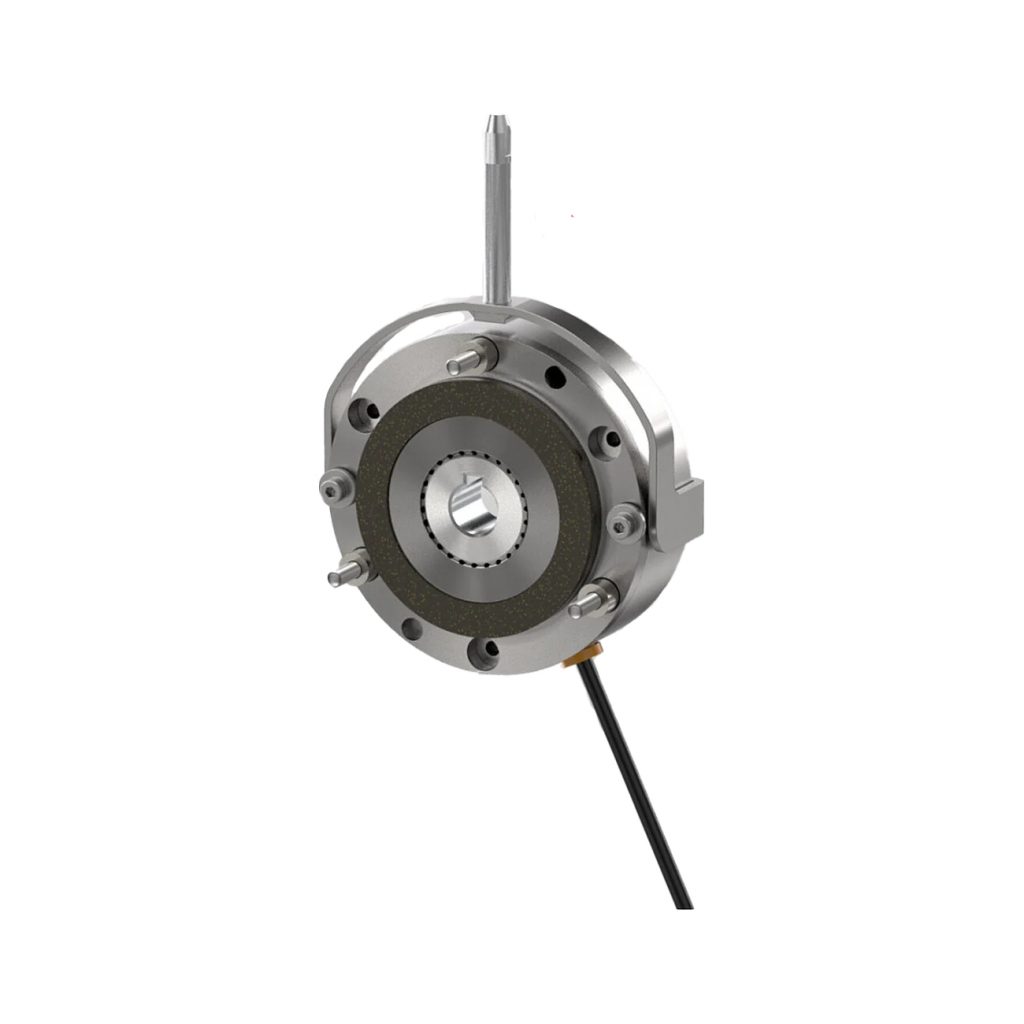

INTORQ BFK457 Industrial Brakes
A spring-applied brake that offers fast installation, maintenance-free holding, and reliable performance with a compact modular design.
The INTORQ BFK457 Industrial Brake is a compact spring-applied brake designed for applications where reliable holding performance is the primary requirement. Featuring integral fixing screws and a fixed air gap, it enables fast, simple installation while reducing maintenance requirements. Its modular design incorporates proven INTORQ friction system components, providing dependable performance and allowing for project-specific adaptations where required.
Features & Benefits
- Cost-effective design with simple installation and long-term reliability
- Compact spring-applied brake for reliable holding applications
- Integral fixing screws enable fast and straightforward installation
- Fixed air gap simplifies installation and operation
- Proven INTORQ modular friction system components deliver dependable performance
- Turned-part design allows project-specific adaptations
- CE marked and CSA certified for worldwide applications
- Maintenance-free when used as a holding brake
| Version | INTORQ BFK457 Basic | INTORQ BFK457 Compact | INTORQ BFK457 Double |
|---|---|---|---|
| Braking torque range | 4 Nm to 80 Nm | 4 Nm to 125 Nm | 2×4 Nm to 2×125 Nm |
| Voltages sizes | 24 V to 205 V | 24 V to 205 V | 24 V to 205 V |
| Insulation class | F (155°C) | F (155°C) | F (155°C) |
| Protection class | IP00 – IP55 | IP00 – IP55 | IP00 – IP55 |
