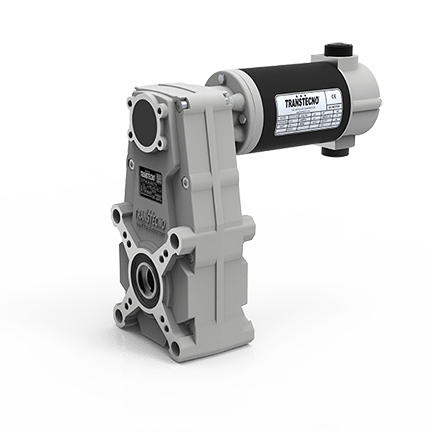

The DC Shaft-mounted gear motors from the ECFT series consist of a helical gear reducer with DC ferrite magnet electric motor. The FT gear reducer and the EC electric motors combine to form a gear motor, the catalogue for which can be downloaded above in PDF format. The form to ask for information is found at the bottom of the page, while the main characteristics of the ECFT permanent magnet shaft-mounted gear motor are listed below:

Product Summary

• Low voltage power supply 12/24 VDC
• Suitable for encoder assembly
• Motor power ratings available from 100 to 800W S2
• Magnetic in ferrite
• Die-cast aluminium housings
• Permanent synthetic oil long-life lubrication
• helical gears
