Ringfeder Steel Disc Couplings TND XSX
TND XSX steel disc couplings deliver backlash-free torque transmission with shrink disc shaft locking for secure, maintenance-free performance
Ringfeder TND XSX Steel Disc Coupling is a high-performance, torsionally stiff coupling designed for precise, backlash-free torque transmission in demanding industrial applications. Featuring an integrated shrink disc shaft-hub connection, it provides a secure, friction-locked mounting solution without the need for keyways, making it ideal for applications requiring accurate positioning, high reliability and simplified installation.
The single-jointed design incorporates two hubs with a single stainless steel disc pack, allowing the coupling to compensate for angular and axial shaft misalignment while maintaining exceptional torsional rigidity. Its modular construction also enables straightforward conversion to a double-cardanic arrangement using two couplings and a spacer where increased misalignment capability is required.
To suit varying operating requirements, the TND XSX is available with two disc pack configurations:
- HD (High Deflection) – Provides increased flexibility for greater shaft misalignment compensation.
- HT (High Torque) – Delivers higher torque capacity for heavy-duty power transmission applications.
Features
- Integrated shrink disc shaft-hub connection for secure, backlash-free shaft locking
- Maintenance-free design with no wear under normal operating conditions
- High torsional stiffness for accurate and reliable power transmission
- Compensates for angular and axial shaft misalignment
- Low restoring forces thanks to an optimised stainless steel disc pack design
- Modular construction allows easy conversion to a double-cardanic configuration
- Simplified shrink disc selection with coupling-specific Ringfeder shrink discs
- ATEX-compliant configurations for explosion-endangered environments can be supplied upon request
Technical Range
- 7 Sizes
- Bore Diameter d: 38-160 mm
(1.496-6.299 inch) - Max. Outer Diameter D1: 116-345 mm
(4.567-13.583 inch) - Hub Distance E: 10.5-32.5 mm
(0.413-1.279 inch) - Overall Length L: 120.5-432.5 mm
(4.744-17.028 inch) - Rot. Speed nmax: 2,100-3,600 1/min
- Torque TKN: 750-44,000 Nm (553.17-32,452.73 ft·lb)
Applications
- Pumps
- Fans
- Compressors
- Generator and Turbine Drives
- Axial and Radial Blowers
- Paper and Printing Machines
- Mixers and Stirrers
- Extruders
- Lifting and Traversing Gears
- Marine Drives
- Water Screw Drives

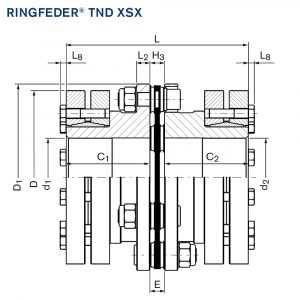

Product Specifications
| CAD | Size | TKN HD Nm | TKN HT Nm | nmax 1/min | d1min mm | d2min mm | d1max mm | d2max mm | C1 mm | C2 mm | E mm | H3 mm | D1 mm | L2 mm | L mm | nSc Stüc | GWsp kg | CTdynHD 106Nm/rad | CTdynHT 106Nm/rad | ΔKaHD mm | ΔKaHT mm | ΔKwHD ° | ΔKwHT ° | ΔKrHD mm | ΔKrHT mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 82 | 750 | 1050 | 3600 | 38 | 38 | 60 | 60 | 55 | 55 | 10,5 | 10,5 | 116 | 10 | 120,5 | 6 | 0,5 | 0,637 | 0,743 | 0,7 | 0,4 | 1,0 | 0,7 | – | – | |
| 98 | 1350 | 1750 | 3600 | 50 | 50 | 70 | 70 | 60 | 60 | 12 | 12 | 140,5 | 11 | 132 | 6 | 0,85 | 1,173 | 1,251 | 1 | 0,6 | 1 | 0,7 | – | – | |
| 118 | 2400 | 3000 | 3600 | 50 | 50 | 75 | 75 | 75 | 75 | 13 | 13 | 166,5 | 12 | 163 | 6 | 1,36 | 2 | 2,082 | 1,2 | 0,8 | 1 | 0,7 | – | – | |
| 141 | 4000 | 5200 | 3400 | 65 | 65 | 95 | 95 | 90 | 90 | 15 | 15 | 198,5 | 14 | 195 | 6 | 2,096 | 2,992 | 3,142 | 1,4 | 0,8 | 1 | 0,7 | – | – | |
| 169 | 6500 | 8500 | 3000 | 65 | 65 | 105 | 105 | 125 | 125 | 21 | 21 | 238 | 16 | 271 | 6 | 4,032 | 5,269 | 6,586 | 1,5 | 1,2 | 1 | 0,7 | – | – | |
| 205 | 21000 | 26000 | 2500 | 95 | 95 | 145 | 145 | 160 | 160 | 28 | 28 | 295 | 22 | 348 | 8 | 10,903 | 21,848 | 22,285 | 1,1 | 0,6 | 0,5 | 0,4 | – | – | |
| 254 | 36000 | 44000 | 2100 | 95 | 95 | 160 | 160 | 200 | 200 | 32,5 | 32,5 | 345 | 26 | 432,5 | 8 | 18,135 | 37,204 | 37,868 | 1,1 | 0,8 | 0,5 | 0,4 | – | – |
