Ringfeder Steel Disc Couplings TND QCQ
TND QCQ steel disc couplings feature a radially removable compact spacer for fast maintenance in confined installations
The Ringfeder TND QCQ Steel Disc Coupling is a torsionally stiff, backlash-free coupling designed for applications where installation space is limited and fast maintenance is essential. Its innovative compact spacer can be installed and removed radially, allowing servicing without disturbing connected equipment, making it an ideal solution for confined industrial environments.
The coupling features two open flange hubs, two stainless steel disc packs and a compact spacer secured with high-strength fasteners to form a double-jointed configuration. Combined with a shrink disc shaft-hub connection, the design provides secure, friction-locked shaft mounting without keyways while delivering precise, backlash-free torque transmission.
Available with two disc pack options, the TND QCQ can be tailored to suit different operating requirements:
- HT (High Torque) – Provides greater torque capacity for demanding power transmission applications.
- HD (High Deflection) – Offers increased flexibility for improved shaft misalignment compensation.
Features
- Radially removable compact spacer for simplified installation and maintenance
- Compact design requiring minimal shaft spacing
- Integrated shrink disc shaft-hub connection for secure, backlash-free shaft locking
- Maintenance-free operation with no wear under normal operating conditions
- High torsional stiffness for accurate torque transmission
- Compensates for radial, angular and axial shaft misalignment
- Low restoring forces through an optimised stainless steel disc pack design
- Simplified shrink disc selection with coupling-specific Ringfeder shrink discs
- ATEX-compliant configurations for explosion-endangered environments can be supplied upon request
Technical Range
- 2 Sizes
- Bore Diameter d: 38-70 mm
(1.496-2.756 inch) - Max. Outer Diameter D1: 116-145 mm
(4.567-5.709 inch) - Hub Distance E: 46.5-55 mm
(1.831-2.165 inch) - Overall Length L: 156.5-175 mm
(6.161-6.889 inch) - Rot. Speed nmax: 3,600 1/min
- Torque TKN: 750-1,750 Nm
(553.17-1,290.73 ft·lb)
Applications
- Pumps
- Fans
- Compressors
- Generator and Turbine Drives
- Axial and Radial Blowers
- Paper and Printing Machines
- Mixers and Stirrers
- Extruders
- Lifting and Traversing Gears
- Marine Drives
- Water Screw Drives

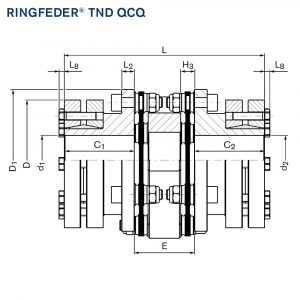

Product Specifications
| CAD | Size | TKN HD Nm | TKN HT Nm | nmax 1/min | d1min mm | d2min mm | d1max mm | d2max mm | C1 mm | C2 mm | E mm | H3 mm | D1 mm | L2 mm | L mm | nSc Stüc | L8 mm | GWsp kg | CTdynHD 106Nm/rad | CTdynHT 106Nm/rad | ΔKaHD mm | ΔKaHT mm | ΔKwHD ° | ΔKwHT ° | ΔKrHD mm | ΔKrHT mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 82 | 750 | 1050 | 3600 | 38 | 38 | 65 | 65 | 55 | 55 | 46,5 | 10,5 | 116 | 10 | 156,5 | 6 | 5,3 | 1,8 | 0,309 | 0,360 | 1,4 | 0,6 | 2,0 | 1,4 | 0,5 | 0,4 | |
| 98 | 1350 | 1750 | 3600 | 50 | 50 | 70 | 70 | 60 | 60 | 55 | 12 | 140,5 | 11 | 175 | 6 | 5,3 | 2,9 | 0,569 | 0,607 | 2,0 | 1,0 | 2,0 | 1,4 | 0,7 | 0,5 |
