Ringfeder Steel Disc Couplings TND OCO
TND OCO steel disc couplings are designed for applications requiring minimal shaft spacing and rapid radial spacer removal without disturbing connected equipment.
Ringfeder TND OCO is a torsionally stiff, backlash-free steel disc coupling designed for precise torque transmission in applications where compact dimensions and easy maintenance access are important considerations.

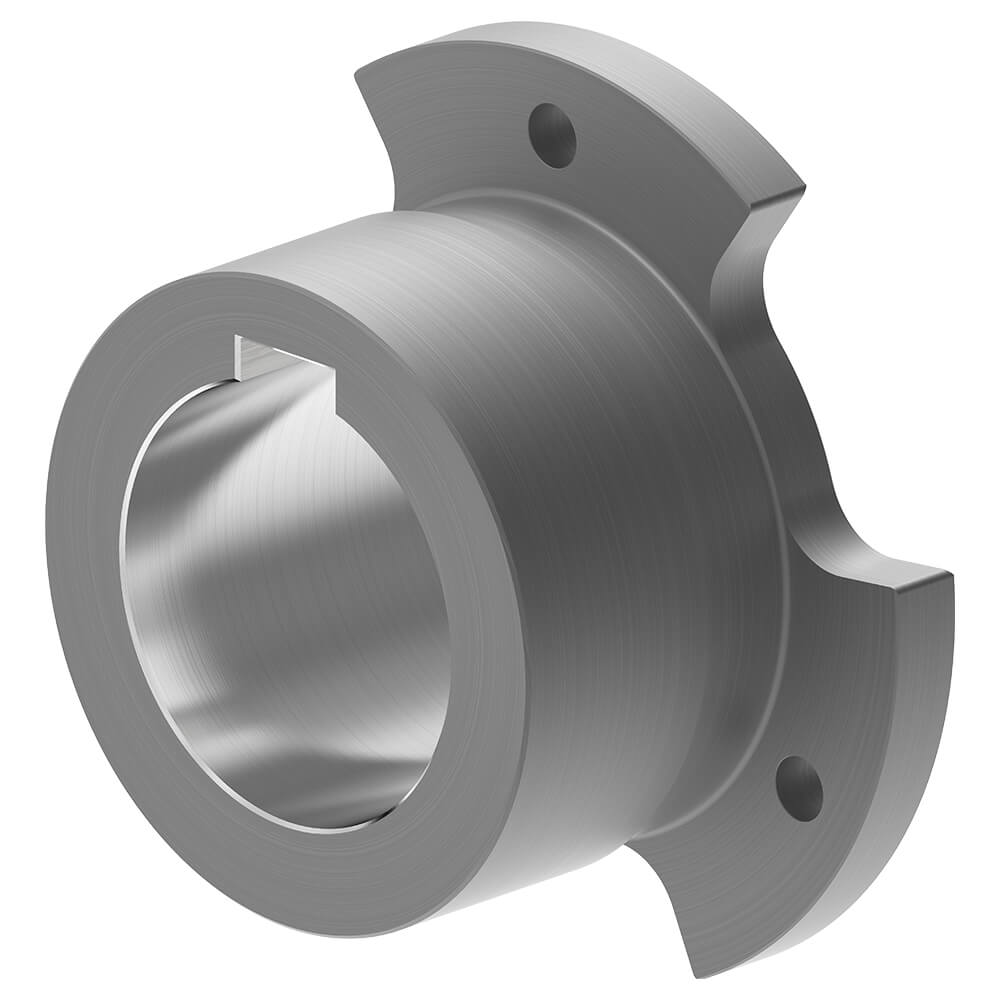

The coupling consists of two standard hubs with open flanges (O) and a compact spacer (C) that can be installed and removed radially. Using high-strength screws, a disc pack is connected between each hub and the spacer, creating a double-cardanic system that provides reliable power transmission and effective shaft misalignment compensation.
Depending on coupling size, two disc pack types are available, HD (High Deflection) with increased compensation capability for shaft misalignments and HT (High Torque) with higher power density for increased transmissible torque requirements.
The double-jointed design with two disc packs compensates for angular, axial and radial shaft misalignments while requiring minimal axial installation space.
Features
- Backlash-free and maintenance-free operation
- High torsional stiffness for precise torque transmission
- Effective compensation of angular, axial and radial shaft misalignment
- Low restoring forces due to optimised disc pack design
- Minimum shaft distance for standard hub configurations
- Radially installable and removable compact spacer
- ATEX-compliant configurations for explosion-endangered environments can be supplied upon request
Technical Range
- 4 Sizes
- Max. Bore Diameter d: 32-65 mm
(1.259-2.559 inch) - Max. Outer Diameter D1: 70.5-140.5 mm
(2.756-5.531 inch) - Hub Distance E: 31.2-55 mm
(1.228-2.165 inch) - Overall Length L: 110-175 mm
(4.331-6.889 inch) - Rot. Speed nmax: 4,600-8,400 1/min
- Torque TKN: 170-1,750 Nm
(125.36-1,290.73 ft·lb)
Applications
- Pumps
- Fans
- Compressors
- Generator and Turbine Drives
- Axial and Radial Blowers
- Paper and Printing Machines
- Mixers and Stirrers
- Extruders
- Lifting and Traversing Gears
- Marine Drives
- Water Screw Drives
Product Specifications

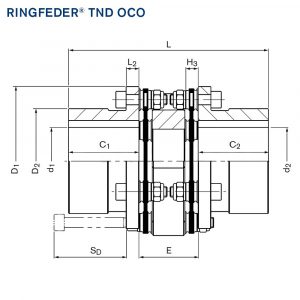

| CAD | Size | TKN HD Nm | TKN HT Nm | nmax 1/min | dpre mm | d1kmax mm | d2kmax mm | C1 mm | C2 mm | E mm | H3 mm | D1 mm | D2 mm | L2 mm | L mm | SD mm | nSc Stück | Gwsb kg | Jsb 10-3kgm2 | CTdynHD 106Nm/rad | CTdynHT 106Nm/rad | ΔKaHD mm | ΔKaHT mm | ΔKwHD ° | ΔKwHT ° | ΔKrHD mm | ΔKrHT mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 170 | 230 | 8400 | 10 | 32 | 32 | 39,5 | 39,5 | 31,2 | 7,5 | 70,5 | 47 | 5 | 110 | 24 | 6 | 1,6 | 0,71 | 0,084 | 0,089 | 0,9 | 0,5 | 2 | 1,4 | 0,3 | 0,2 | |
| 63 | 320 | 420 | 6800 | 14 | 42 | 42 | 45 | 45 | 38 | 9 | 88 | 62,5 | 8 | 128 | 32 | 6 | 3,1 | 2,2 | 0,136 | 0,151 | 0,8 | 0,7 | 2 | 1,4 | 0,4 | 0,3 | |
| 82 | 750 | 1050 | 5400 | 15 | 55 | 55 | 55 | 55 | 46,5 | 10,5 | 116 | 82 | 10 | 156,5 | 40 | 6 | 6,7 | 8 | 0,309 | 0,360 | 1,4 | 0,6 | 2 | 1,4 | 0,5 | 0,4 | |
| 98 | 1350 | 1750 | 4600 | 19 | 65 | 65 | 60 | 60 | 55 | 12 | 140,5 | 98 | 11 | 175 | 47 | 6 | 10,3 | 18 | 0,569 | 0,607 | 2 | 1 | 2 | 1,4 | 0,7 | 0,5 |
